Custom Domain Data Collection (CDDC)

Description

To guarantee data collection in the best conditions, we provide the ability to send hits to our servers with a CNAME from one of your subdomains. While the CNAME redirection can be detected by advanced adbockers and some browser.
By using a custom domain, you keep your hits, while keeping our SLAs, you can even have server-side first-party cookies.

Note

To find out more about the Custom Domain Data Collection (CDDC), please reach out to our support teams.

Creation

Strategy

There are several ways to configure your custom domain to site mapping with several implications.
Here is a list of possible configurations to identify the best architecture:

Case	Site	Data collection	Cookie deposit	Cookie	CDDC	Analysis
1	www.site.com	data.site.com	data.site.com	1st	✔	Same domain: no blocking
2	test.site.com	data.site.com	data.site.com	1st	✔	Same domain: no blocking
3	www.sitea.com	data.site.com	data.site.com	3rd	✔	Different domain but not associated to analytics. Can be blocked because it's 3rd.
4	www.siteb.com	data.siteb.com	data.siteb.com	1st	✔	Same domain: no blocking
5	www.sitec.com	xiti.com	xiti.com	3rd	✘	Analytics associated domain, and 3rd party. Cookies and hits can be blocked.

Explanation

Best case scenarii: #1, #2 and #4.
1 CDDC per domain, but please note cross-site analysis will only work between case #1 and #2.

Process

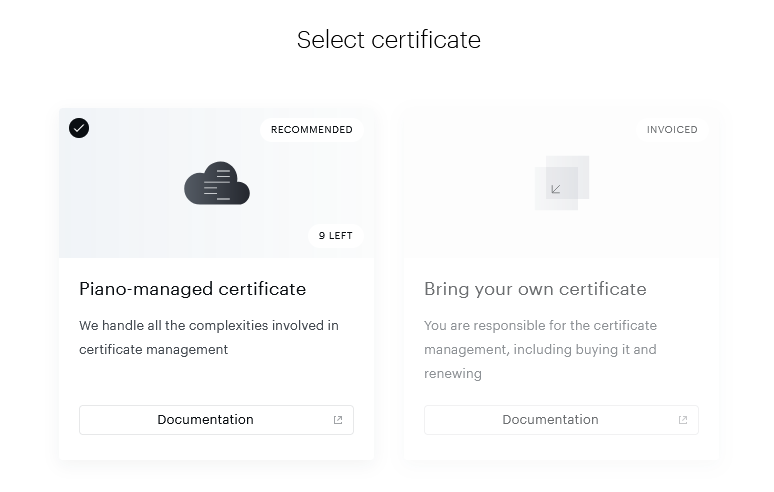

Piano-managed certificate (recommended)

The first option is the Piano-managed certificate, which allows you to create the custom domains in a matter of clicks. Once you've chosen your sub-domain, you can redirect your DNS to the alias provided.

The certificate supplied by Piano will then be renewed before it expires, with no action required on your part.

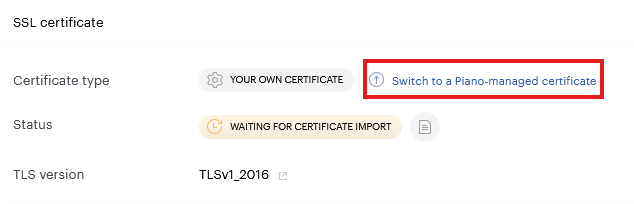

Existing domains using custom certificates can also be migrated from the side menu by clicking on the domain.

Bring your own certificate (invoiced)

Setting up a custom domain to suit your need, can only be done after reaching out your Key Account Manager or Customer Success Manager.
Once the project is all validated with our teams, you can set your custom domain through a 9 steps process:

You: pick/create your site subdomain

You: give our consultant the CSR information

Piano: validates the CSR information

You: buy a SSL certificate with the CSR information (no wild-card)

Piano: imports the certificate in Data Collection Portal

You: setup a client-side DNS redirection (CNAME)

Piano: checks DNS and collection status in Data Collection Portal

Piano: manually checks CDDC is ready

Piano: notifies you that the CDDC is ready

Certificate Signing Request (CSR)

Here is all the information required to generate your CSR.

Information	Example	Details
E-mail address	support@piano.com	Email address linked to the collection domain. As the email address will be used to send SSL certificate expiration notifications, we recommend the email address be a technical one, and generic instead of personal so that alerts can be correctly distributed. You may enter several email addresses, separating each one with a comma. Admins and Delegates are added to this list.
Common name	collect.piano-analytics.com	The collection domain. Wildcards (*) are not authorised.
Organization	PIANO ANALYTICS	Name of the company covered by the SSL certificate linked to the collection domain.
Organizational unit	Technical Department	Name of the technical department associated with the certificate. (optional)
Locality	MERIGNAC	City where company is located.
State	GIRONDE	Province/region where company is located.
Country	FR	Select the country where the company is located.

Security

CSR and private key management
Piano Analytics takes responsibility in generating the CSR and the certificate's private key to ensure its security.
This way, Piano Analytics will be the only owner of the private key which will not be shared to the customer to ensure the certificate associated to the CDDC is not used in any other purpose.

Approved certificates
Piano Analytics does not allow wildcard certificates (*) to make sure the certificate can only be used for the concerned CDDC.
CSRs generated are based on RSA encryption with a 2048 bits private key. EEC certificates are not supported by the CDDC setup.
The CDDC is compatible with all browsers supporting SNI.

Validity of the certificate
Be careful, Safari no longer allow certificates for bigger period than a year generated after September 1st 2020.
Please make sure your certificates do not exceed this period to avoid any potential trafic loss (hit not sent).
Also, note that the minimum period for a valid certificate is currently 9 months.

Certificate's authority
It's up to the customer to choose a known certification authority and a type of certificate matching its own security requirements.

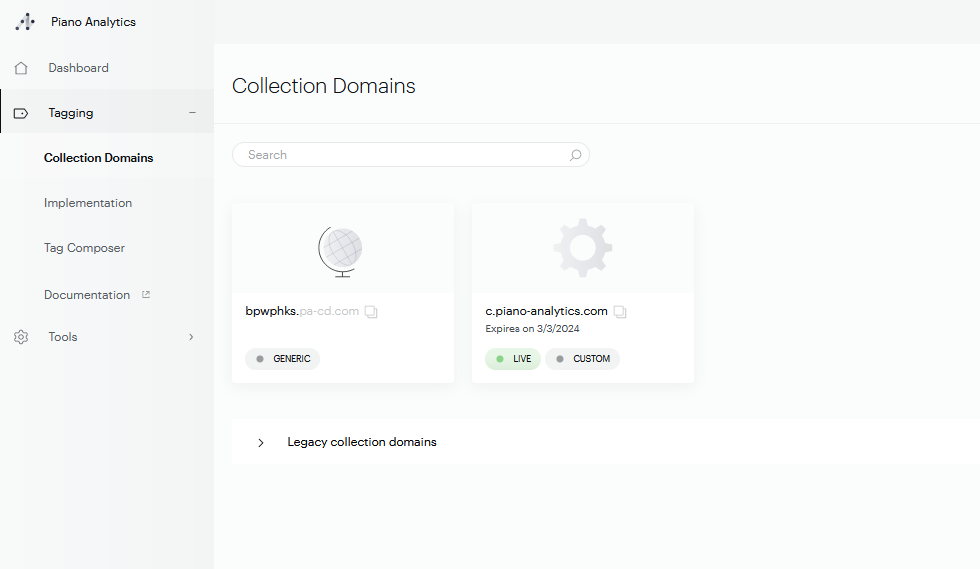

List

Once you set up at least one custom domain, you will find a new item for it in the interface.
It shows you the main information to monitor and identify your CDDCs:

Collection domain
Status
Expiration date

If you click on this item you will get the overview of all its configuration and associated sites.

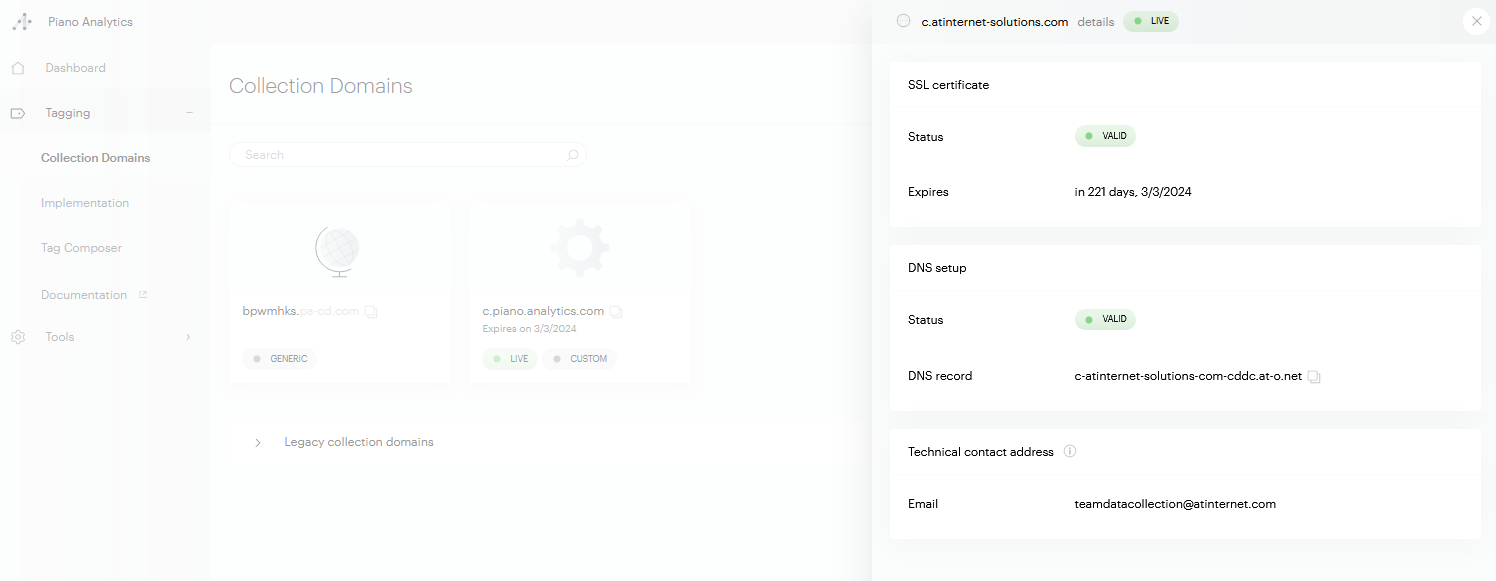

Overview

The custom domain overview shows you all technical details about its setup:

Status
Expiration date
Alias
DNS Record
Email(s) to reach for certificate renewal

Tagging

Update the collection domain

You can manually edit the file to change its collection parameters accordingly.

Piano Analytics SDK

These elements needs changed through Javascript methods: https://developers.atinternet-solutions.com/piano-analytics/data-collection/sdks/javascript#basic-configuration

CODE

collectDomain: subdomain.domain.com
cookieDomain: .domain.com

Cookie deposit

Visitor identification cookies

Browsers like Safari and Firefox now require cookies to be first party (deposited on the current domain), server-side (deposited by a server) and secure (https).

Security

Please check with your IT teams that any sensitive cookie is deposited on the parent domain used for the CDDC.
Piano Analytics does not store or exploit cookies that are not generated by its servers or tags.
To avoid the transmission of these sensitive cookies to our servers, please use them only on a specific domain (with subdomain), or use another parent domain than the one used for the custom domain data collection.
